Basic Boat Info
Dimensions
Engines / Speed

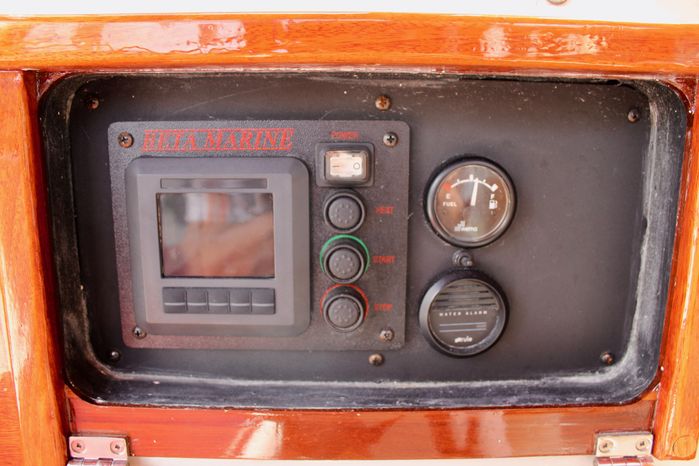

- Make: Beta Marine (New 2017)
- Model: 105 Turbo 4-Cylinder
- Drive Type: Direct
- Fuel: Diesel
- Engine Power: 105hp
- Type: Inboard
- Propeller Type: 3 Blade, Bronze
- Year: 2017
- Engine Hours: 192
- Engine Location: Center
Other

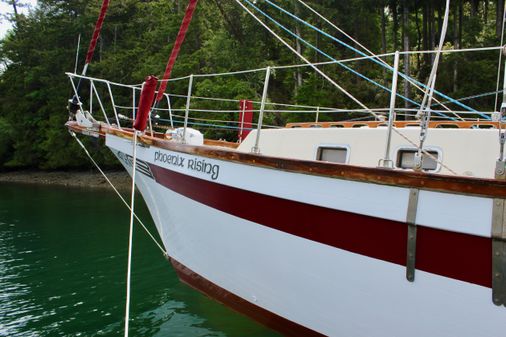

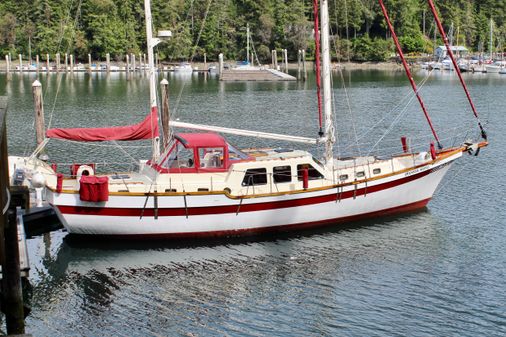

- Model: Pilothouse Ketch
- Location Built: Port Townsend, WA

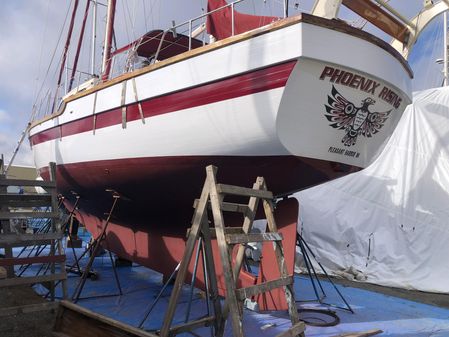

- Underwater Profile: Full Keel
- Hull: Fiberglass 3/4"-1 1/2"
- Cabins and Decks: Fiberglass over 3/4" Ply, painted
- Bulkheads: Plywood
- Frames: Fiberglass
- Ballast: Internal

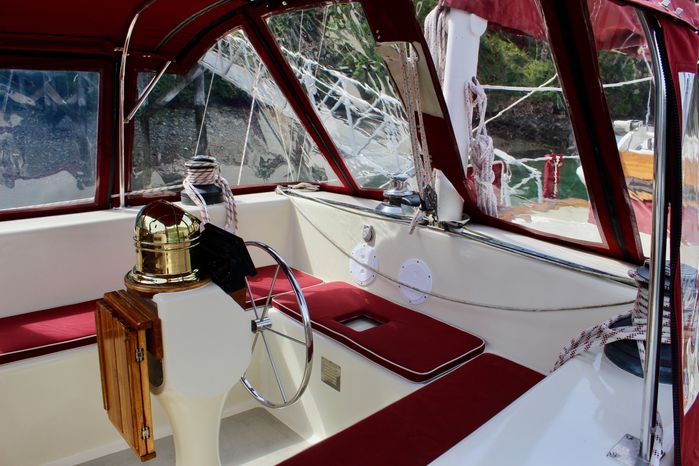

- Steering: Hydraulic Dual Station Wheel Steering
- Stuffing Box: PSS Dripless
- Shaft: 1 1/2" Stainless
- Propeller: 26" LH 21" 3 Blade Bronze
- Designer: Ed Monk Jr.
- Builder: Skookum Marine

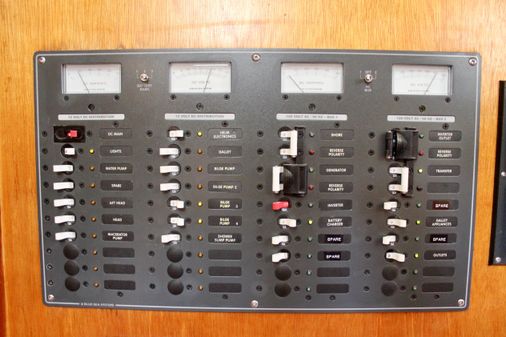

- Ship's System: 12 VDC and 110 VAC
- Shore Power System: 30 Amp Smart Plug

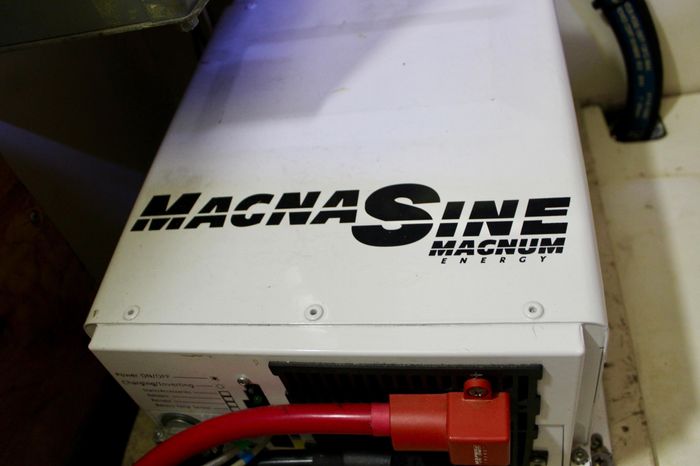

- Inverter: Magnum 2850 Watt with Remote Display
- Bonding System: Yes
- Battery Charger: ProMariner ProNautic 12-40P
- Alternators: 60A for Start Battery and Balmar 160A External Regulator for House Banks
- Starter Battery: AGM 8D (New 2019)

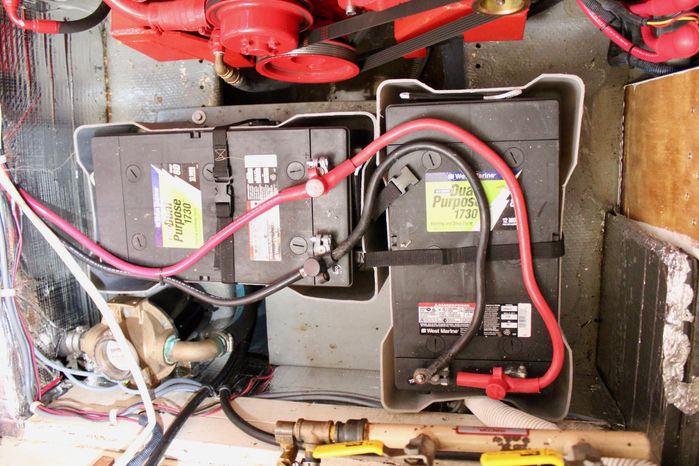

- House Batteries: (2) Full Banks of (2) 8D, (4) 8D Total (New 2021)
- Battery Monitors: (2) Blue Sea Systems M2
- GFCI Outlets: Yes
- Isolation Transformer: Tierney Electrical Mfg 15KW
- Reverse Polarity Indicator: Yes
- Bilge Pump(s): (4) Rule Submersible. Pump Capacity 2700 & 1500 GPH
- High Water Alarm: Yes
- Multi-Function Chart Plotter/Radar: Garmin 7610XSV (In Wheelhouse) & Garmin 7608 (Cockpit)
- VHF: ICOM 506 with AIS and DSC
- Handheld VHF: Standard Horizon HX870

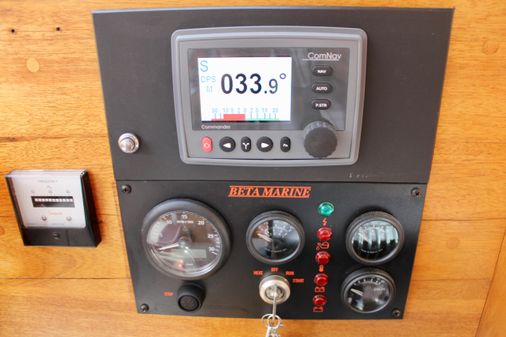

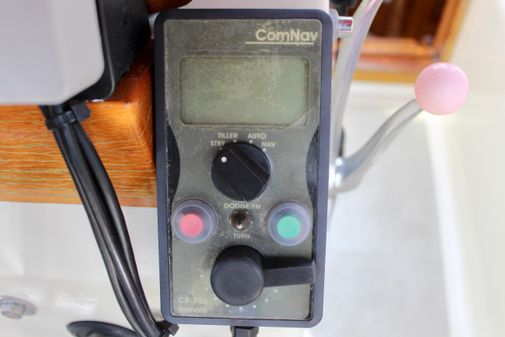

- Autopilot: ComNav, controlled from Cockpit or Wheelhouse (New 2008)
- Rudder Indicator: Yes
- AIS: Yes
- Speed: Raymarine i70 and Airmar DST810
- Depth: Raymarine i70 and Airmar DST810
- Sonar: Garmin GT50M-THP, Dual CHIRP down and Side Scanning Modules. Depth and Temp included

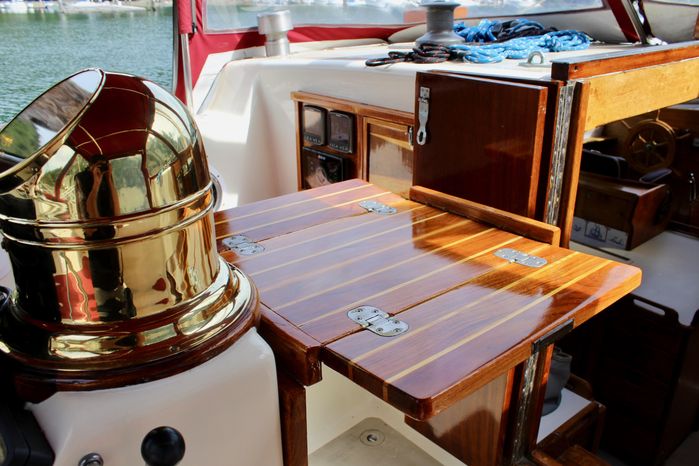

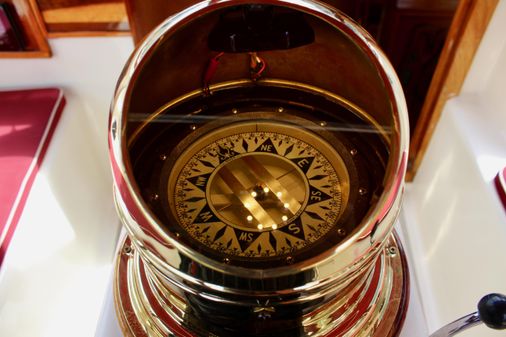

- Compass: Dirigo 5", 1 Fluxgate, 1 Solid State
- Radar: Garmin HD18
- Barometer and Ship's Clock: Yes
- Weather: Garmin GDL30A Sirius XM and Radio
- Network: NMEA2000 and NMEA 0183 interconnected with Actisense NGW-1
- Wind: Vulcan 7FS and Garmin Wind Transducer
- Navigation Lights: LED with Working Status Indicator
- Radar Reflector: Yes

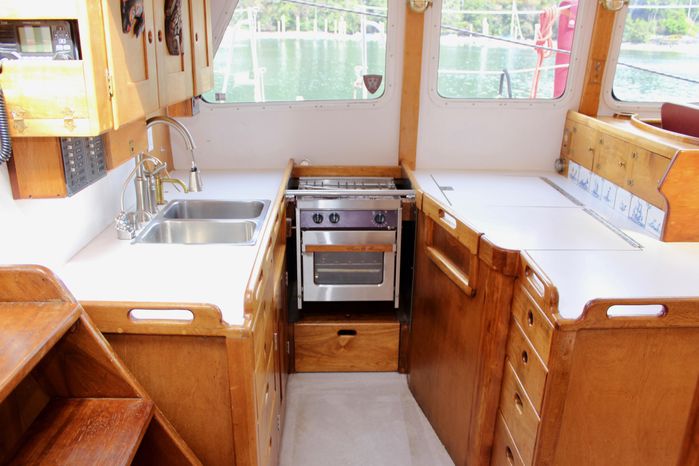

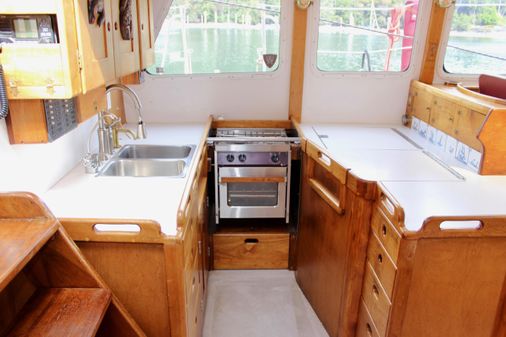

- Galley Stove and Oven: Force 10 2-Burner LPG, with 4 Externally Stored LPG Tanks
- Sink: Double Stainless Steel Sink with Pressure Hot and Cold Water, Salt Manual Pump and Filtered Water Faucet. All water runs through a Carbon Filter. Filtered Water also runs through Reverse Osmosis System.
- Hot Water Heater: 30 Gallon 120V and Calorifier

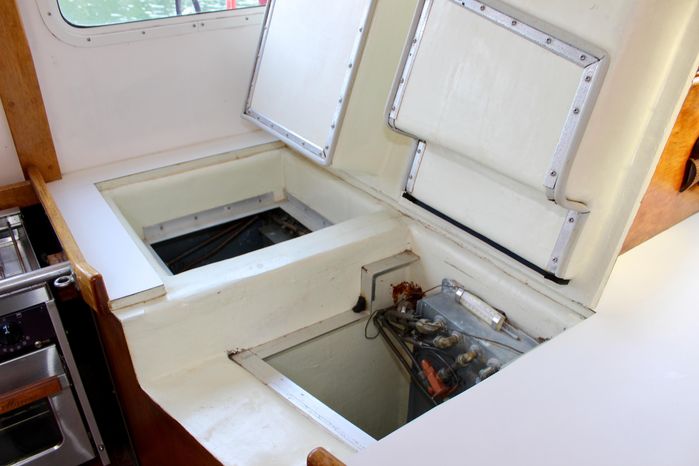

- Refrigerator: Cold Plate System
- Freezer: Cold Plate System
- Cabin Heat: Dickenson Antarctic Stove

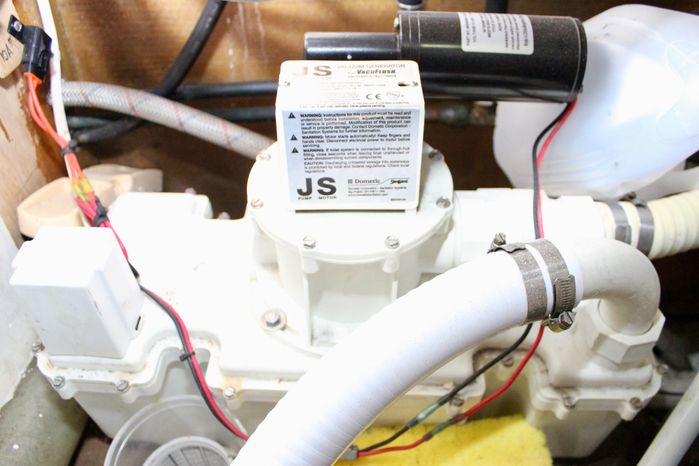

- Heads: (2) Eco-Vac Toilets - to Holding Tank or Overboard

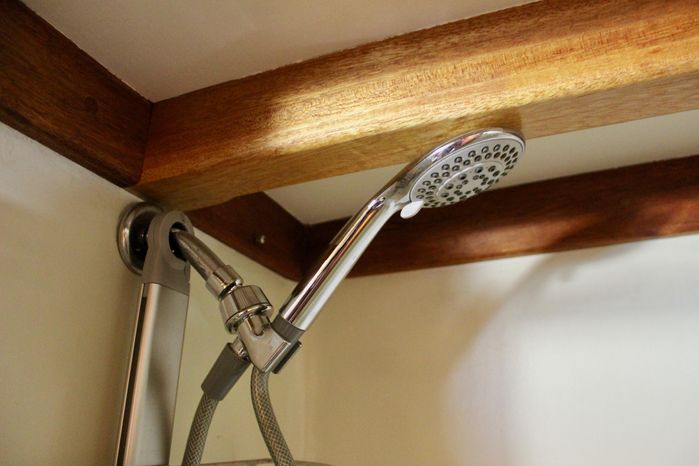

- Shower(s): Forward Head has floor drain for shower (Not currently installed), Aft Head has Separate Shower Stall with Tub
- Light Fixtures: LED

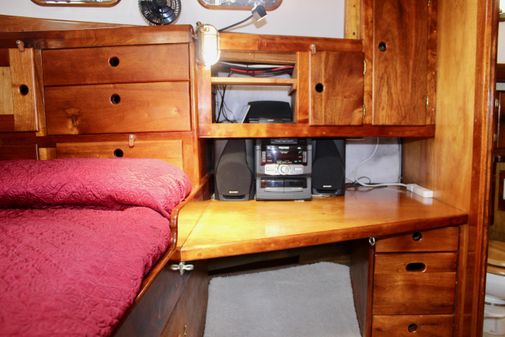

- Custom Queen Bed in Aft Stateroom
- Stereo: Fusion Stereo with Speakers in Cabin and Cockpit. Bluetooth and iPhone Enabled and can be controlled from Garmin Chartplotters
- Sails: Mainsail, Mizzen, Staysail and Jib (Condition: Good)

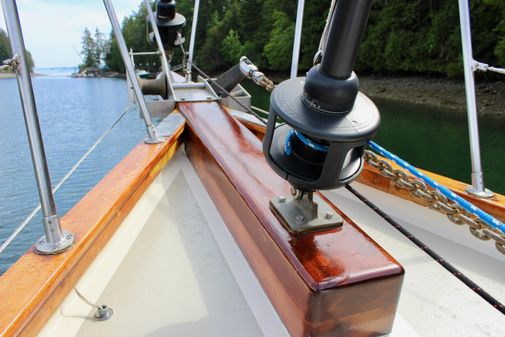

- Furlers: Main, Staysail and Jib on Harken Mark IV Furlers

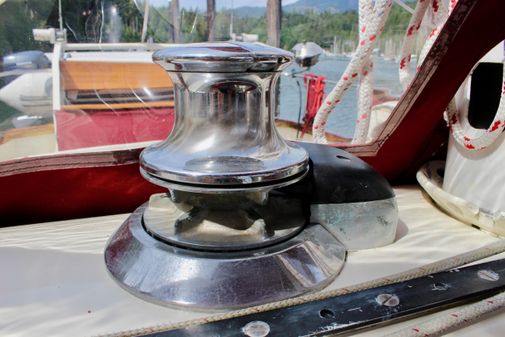

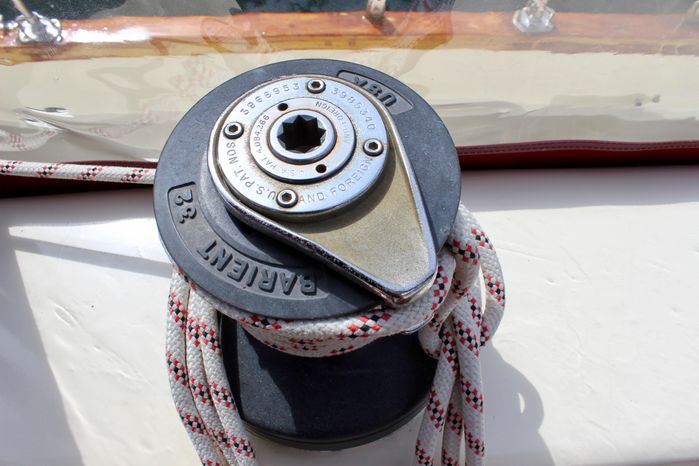

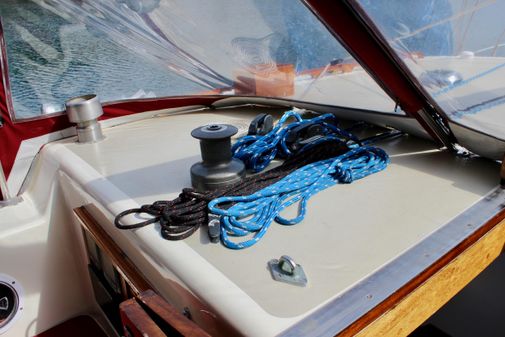

- Winches: (2) Barient 32 Self-Tailing Primaries, (2) Barient and (1) Electric Winch
- Standing Rigging: 1x19 SS Wire (New 2008)

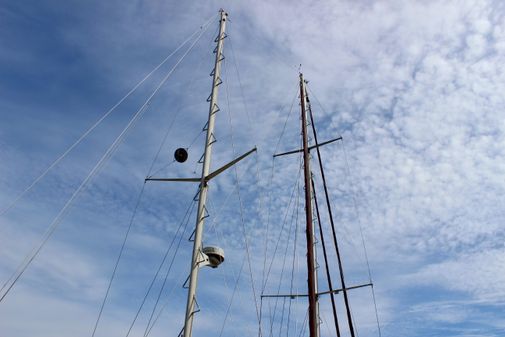

- Mast and Boom: Aluminum painted white
- Lifelines: Double SS with Plastic Sheathing
- Fuel Tank: 600 Gallons Total, (2) 300 Gallon Tanks. Fiberglass over Wood Framing Integrated into Hull
- Water Tank: 750 Gallons, (3) 250 Gallon Tanks. Fiberglass over Wood Framing Integrated into Hull
- Holding Tank: 75 Gallons, Poly

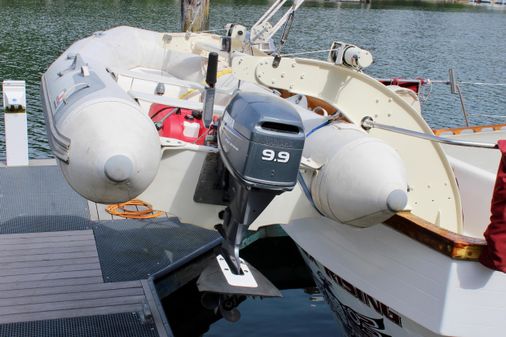

- Dinghy: 14'6" Avon Fiberglass RIB
- Outboard: 9.9 Yamaha 4-Stroke with Electric Start
- Davits: Electric Winch Controlled at Davit's or by Remote FOB

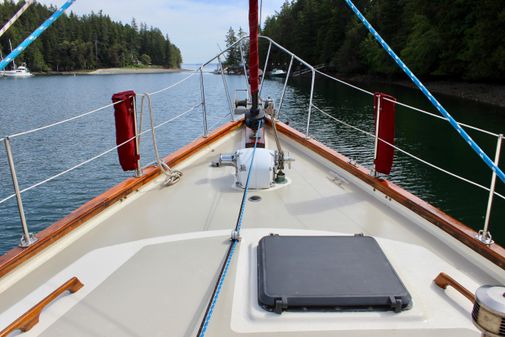

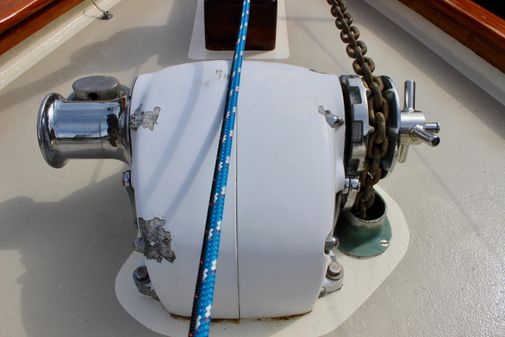

- Windlass: Maxwell Nilsson 12 VDC
- Primary Anchor: Bruce 110lb with 375' 3/8" BBB Chain with Stainless Swivel
- Spare Chain Rode: 200' 5/16" BBB

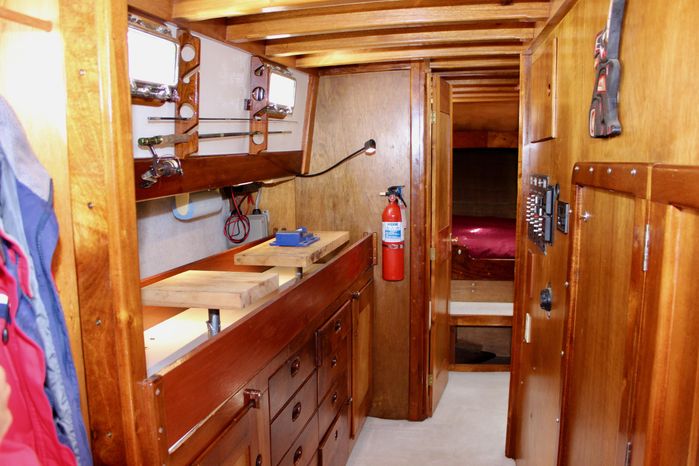

- Fire Extinguishers: (4) ABC
- Fixed Fire Extinguishers: FireBoy FE-241
- LPG Solenoid: Yes

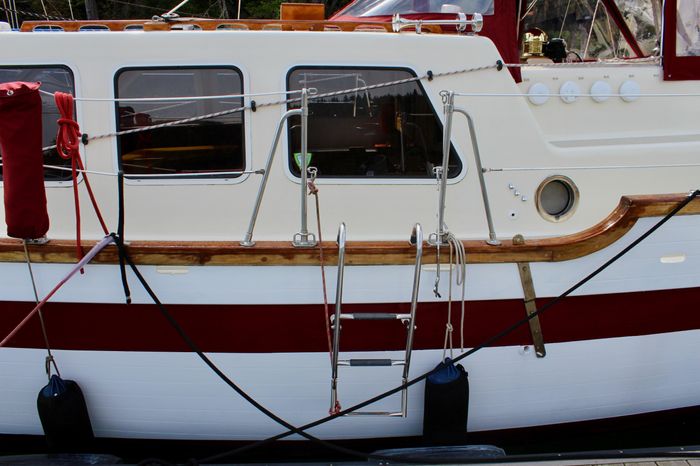

- Boarding Ladder: Yes
- Safety Harness: Yes
- MOB/Life Sling: (2) LifeSling II Systems
- Flares: Yes
- Carbon Monoxide Detectors: Yes

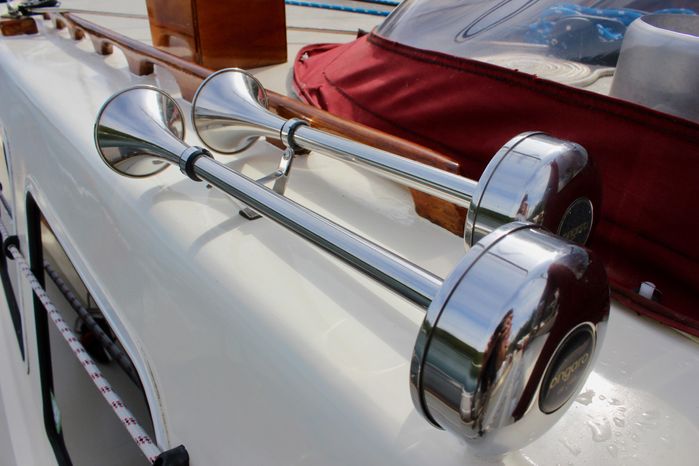

- Horn: Dual Electric operated from Cockpit or Wheelhouse
- Searchlight: Handheld

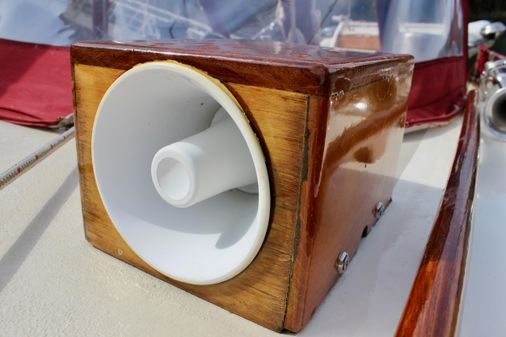

- Hailer/Foghorn: ICOM 506
- Float Bags: (4) Emergency Float Bags with (4) Oxygen Tanks (To keep boat afloat in emergency)
