2016 Dix Harvey DH 550

Praia do Carvoeiro Algarve

$692,270

 THIS AMAZING DIX/HARVEY 550 IS AN EXTREMELY WELL BUILT VESSEL, BUILT BY TWO LIFELONG YACHTSMEN IN ALL ASPECTS. THEY HAVE BUILT MANY BOATS BETWEEN THEM, AND "FRIENDS FOREVER" IS A WONDERFUL EXAMPLE OF ALL OF THOSE YEARS OF KNOWLEDGE AND EXPERIENCE. SHE IS READY TO SAIL, BRING CLOTHES, FOOD, BEVERAGES AND YOUR WONDERLUST!



FROM THE OWNER:

Rig:

Sparcraft in Cape Town built the rig from two 11 metre lengths of appropriate Aluminium sections and while the design called for a 21 metre high mast, discarding a metre from one of the sections did not appeal to us so we contacted Dudley to see if we could just join the two sections and have a 22 metre high mast which we thought would look better. Dudley had no issue with the idea as long we stuck religiously to the rest of the plan and changed nothing else. We in fact did change one thing, when we did our first sea trials it became apparent that we would need extra support for the extra length at the top of the mast so we introduced a pair of jumper stays which are a great improvement all round and the mast holds up really well, having done two Atlantic crossings in absolute comfort. Standing rigging is stainless steel Dyeform wire.The boom is also built in Aluminium with haystacks and lazy jacks with a separate cover. The self tacking jib is on a rope fed Profurl furler.



Sails:

We chose North Sails South Africa for this project and they produced a very efficient suit of sails, the self tacking Genoa and fully battened mainsail with its three deep reefing points drive the boat easily, we found when ocean crossing that an extra reef hardly affected speed through the water but made the ride much more comfortable and the autopilot coped so much better. There is a storm jib/trinquette combination sail which can be reefed and set in two different modes depending on the wind strength and this sail is set on a separate stay set up when required without too much effort at all. We found it efficient when going dead downwind in breeze to set the furling Genoa to one side and the Trinquette on the other and leave the mainsail down. The Autopilot loved this set up and the boat went along fine at eight plus knots in twenty knots or so of wind. We also had a fairly heavy Asymetrical spinnaker made which really pulls the boat along  when one wants to make more miles per day. This is set on a bridle system off two mini bowsprits and the bridle can be flown well to either side as required as it is controlled via the winches and jammed off in the desired spot. Without undue pushing or racing, we found Friends Forever to average 166 miles per day over the two Atlantic crossings we did from Cape Town to St Martin and then from St Martin to Spain. The Autopilot did 90% of the steering on the second passage with only my wife and I on board, steering when we did, for fun.



Propulsion:

We decided to install two 55 D Volvo Sail Drives   Installed under the bunks of the aft cabins and they are fuelled by tanks installed in the aft section of the boat situated higher than the engines so the fuel is gravity fed to the motors. These 68 litre tanks are monitored with fuel gauges and gravity filled from the larger, 400 litre fuel tanks situated just forward of the mast. The two Volvos are more than enough power and can propel the boat at ten knots plus if really needed. At 1800 revs we cruise at around eight knots in calm waters. Fuel consumption is around two and a half litres per hour, per motor.



Accommodation:

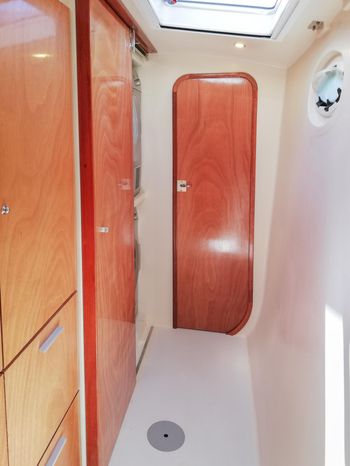

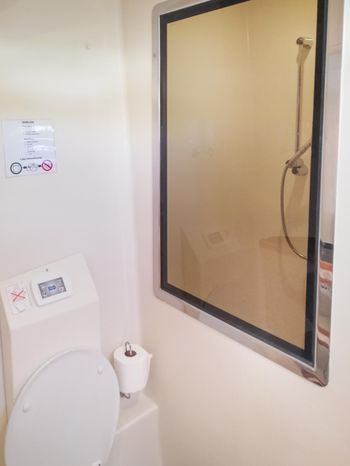

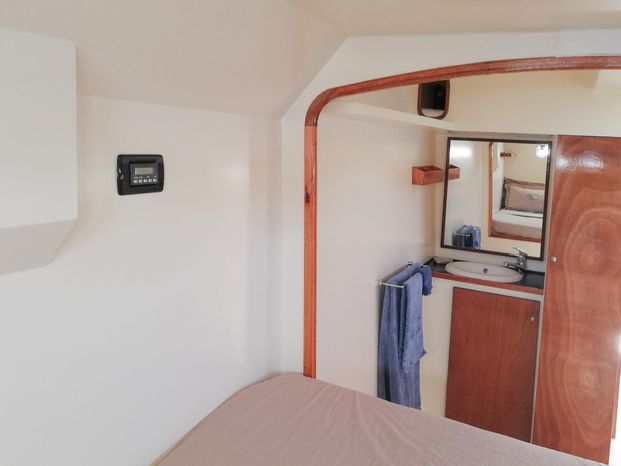

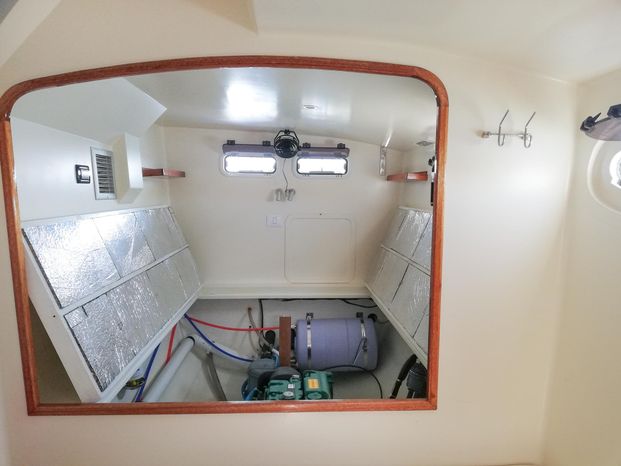

 A boat this size can be configured to "sleep" many passengers but we decided to have one larger "owner's side" to port  and two cabins in the starboard hull. This leaves room up front on the single cabin port side for a utility room where we installed the generator and water maker in very practical situations so that working with and maintaining is done easily, something we considered of paramount importance, so often this type of equipment is installed in the most difficult and inaccessible places causing poor maintenance and stressful expense, not to mention lack of service. The other space available allows for an en-suite bathroom for this side which includes an enclosed shower, wash hand basin and electric toilet plumbed into the fresh water supply. On the port side the cabin is a little more spacious as there is no need for lockers as these are provided for amidships. The cabin has a small desk below a mirror which can be used as a workstation or other preparations. This cabin can be shut off from the rest by means of a sliding door which also serves to conceal the washing machine and dryer also situated in the amidships area. This part of the boat also houses four large drawers which are designed for longer term galley stocks when passage making. Forward of the utility room there is meaningful storage space for the many items needing to be put away safely when passage making. We have extra salon chairs, fishing rods, fuel cans, extra life jackets and so on. On the starboard side there are two cabins as mentioned, one aft is very similar to the port side except there is a cupboard with shelves and some hanging space and a vanity with a wash hand basin. Before the bed is a foot locker also as on the port side. Forward is the third cabin which is more than adequate, the only visible difference being that the bed is somewhat narrower than the aft ones. The cabin in most adequately fitted with cupboard space, footlocker and wash hand basin. Forward of the bed is a door leading to the bow section with huge storage for items not required on a daily or even weekly basis, for example those large empty suitcases people bring all that unnecessary stuff along in! Amidships we have an electric toilet also freshwater flushing with its own hand basin so the guests do not need to use the cabins to freshen up. On the forward side of the stairs we built in a large airy shower which is a real pleasure to use compared to many boats.

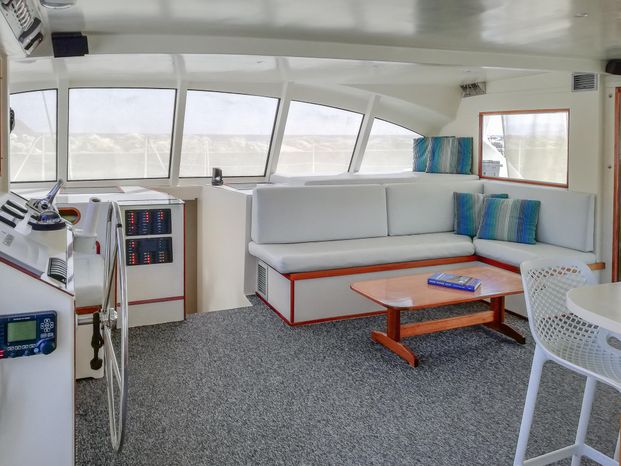

The saloon and galley area are really the piece de resistance on Friends Forever, being so large, airy and friendly. One can move around without having to disturb other shipmates with ease, the space being more like an apartment than a boat! The galley is fitted with a five burner gas stove and oven by Smeg and there is enough room to work and make magic. There is a twin bowled sink which could be larger but is actually adequate. Under the eight seater counter, offset to the port side are the galley refrigerator, freezer and the drinks fridge. The galley fridge and the freezer  can be powered with 220 Volt shore power which eases up on the batteries, when possible. Starboard side we have an L shaped settee, loose coffee table and forward of that the chart table/desk. Large airy windows add to the overall impression of space and light. The aft cockpit is adequate and easily accommodates six for meals or cocktails but is smaller than found on many other  catamaran  models but then that is why the saloon is so spacious, which we prefer.



Equipment :

Electronics. We chose Garmin for all the sailing electronic equipment and it has worked well for the 12000 odd miles we have sailed so far, there is a chart plotter at the helm station with autopilot alongside and the two are integrated which means the autopilot can be controlled from either. The autopilot machine is a rotary type which I rate very highly having used one right around the world without a moment's trouble. In full view of the helm station are two displays which can be personally configured we have speed and depth on one and wind direction, strength etc. the two motor controls and dials are also there along with the binnacle magnetic compass. Above ones head we have mounted various gauges, fuel and water, electricity management DC and AC and the  Lewmar AA 560 Auto Anchor control dial, which I must admit we have not mastered yet. Also mounted there is the control panel for the generator. The VHF radio is mounted on the left of the helm station, with the autopilot hand held control mounted next to it. On the right of the helm we have the Fusion dvd/cd player which has 8 speakers, 4 in the saloon, 2 at the foredeck and 2 for the aft cockpit, all of which can also be controlled in the master cabin.



Solar Panels. These are priceless items to have on board. We installed four large panels which keep the batteries well charged most of the time as it has to be a really cloudy day to seriously affect them negatively. We found that we needed to boost the batteries either by some motoring every week or so or by using the 220Volt battery charger when running the generator which should preferably be done after dark for best results, when the solar panels are dormant.



Deck gear. We chose Lewmar for the deck hatches and for the deck hardware and running blocks and all the running rigging and sheets are controlled from the centre cockpit in front of the centrally placed helm station by means of two very powerful Electric Lewmar winches and a series of well placed jammers, 21 in total, all led towards the winches. At first one might be sceptical but with a little practice the system is understood and much appreciated because it works. My wife and I sailed the boat very easily across the North Atlantic in twenty days from St. Martin to Gibraltar. The custom made Dinghy davits are operated by means of a Lewmar 45 hand powered winch which also serves as a strong point aft of the vessel in case of need.



Generator. We have a 9,4 KVA Westerbeke generator in a sound proof casing mounted at waist height in the Utility Room for ease of service and maintenance. So far it has been more than adequate for our needs.



Water Maker. We chose Sea Recovery, the Aqua Whisper Mini 750 which makes us superb water at the rate of about 30 US gallons per hour. This is a 220 volt machine powered by the generator. The unit self back washes one weekly when connected to shore power and the water pressure has to be on.



Air Conditioning. This is an area where we went more than big! There is a total of 75000 BTU of air conditioning power on board, 16000 for each aft cabin and 43000 for the saloon. The forward cabin does not have a dedicated unit but will cool down with the saloon area adequately unless the cabin door is closed..  We used Cruisair marine air conditioners from the USA, to say they are efficient is an understatement, the boat cools down in minutes.



Tender. Gemini Inflatables from Cape Town supplied our 3,8 metre semi rigid with an aluminium bottom panel, ideal for when beaching or hitting hard objects, powered by a 15 Horse Power Mercury four stroke motor which puts the tender easily up on to a plane with two passengers on board. Good for squeezing up to six for a slower ride to the Taverna.



Water. The boat carries an impressive 900 litres of water in two stainless steel tanks which can inter connect or be separate, one serving the Port hull, the other Starboard, each with own pressure pump, i.e. two systems. Each hull has a hot water system heated either with the motors running or with 220 Volts when connected to shore power or by running the generator.



Fuel.  There are two stainless fuel tanks each carrying 400 litres, gravity feeding fuel to two more 65 litre tanks situated in close proximity to the motors. We believe it is a good thing to have the fuel close to the motors and also higher, so the fuel gravity feeds to the motors. The total fuel therefore is 930 litres, enough to motor around 1300 miles or so. Having said that our motors have only 450 hours each after two years and 11000 miles so this is really a great sailing catamaran!





installed a crew cabin port / front, copper slip and a completely repainted deck. In addition, an AIS transponder is now also installed, as well as an 2000 watts inverter for small requirements.

Basic Boat Info

Boat Name: Friends Forever
Make: Dix Harvey
Model: DH 550
Year: 2016
Condition: Used
Category: Sail
Construction: Composite
Boat Hull ID: BertieProv16
Has Hull ID: Yes
Keel Type: Other

Dimensions

Length: 55 ft
Length Overall: 54'11 ft
Beam: 28'6 ft
Max Draft: 3'6 ft
Electrical Circuit: 12 V
Single Berths: 2
Double Berths: 2
Cabins Count: 3

Engines / Speed

Engines: 2
Engine #1 Specs:
  • Make: Volvo Penta
  • Model: 55D Saildrive
  • Drive Type: SailDrive
  • Fuel: Diesel
  • Engine Power: 55hp
  • Type: Inboard
  • Propeller Type: 3 Blade, Bronze, Folding
  • Year: 2016
  • Engine Location: Port
Engine #2 Specs:
  • Make: Volvo Penta
  • Model: 55D Saildrive
  • Drive Type: SailDrive
  • Fuel: Diesel
  • Engine Power: 55hp
  • Type: Inboard
  • Propeller Type: 3 Blade, Bronze, Folding
  • Year: 2016
  • Engine Location: Starboard
Total Engine Power: 110hp

Tanks

Fuel Tanks: 1
Fuel Tank Capacity: 246 gal
Fuel Tank Material: Stainless Steel
Water Tanks: 1
Water Tank Capacity: 238 gal
Water Tank Material: Stainless Steel

Other

Heads Count: 2
Drive Type: Sail
Windlass Type: Electric
Boat Class: Catamaran, Multi-Hulls, Cruisers
